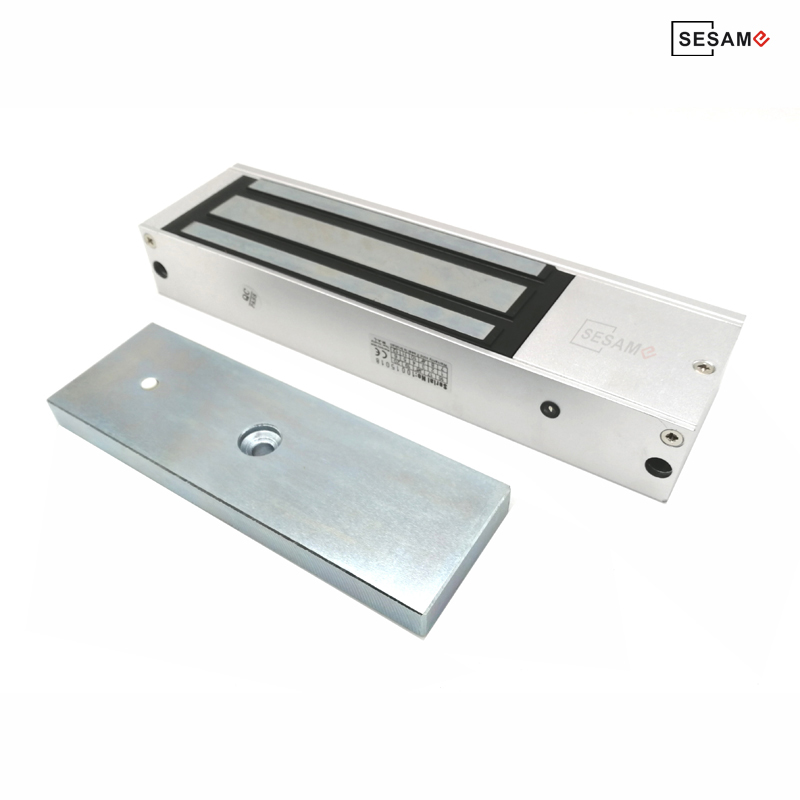

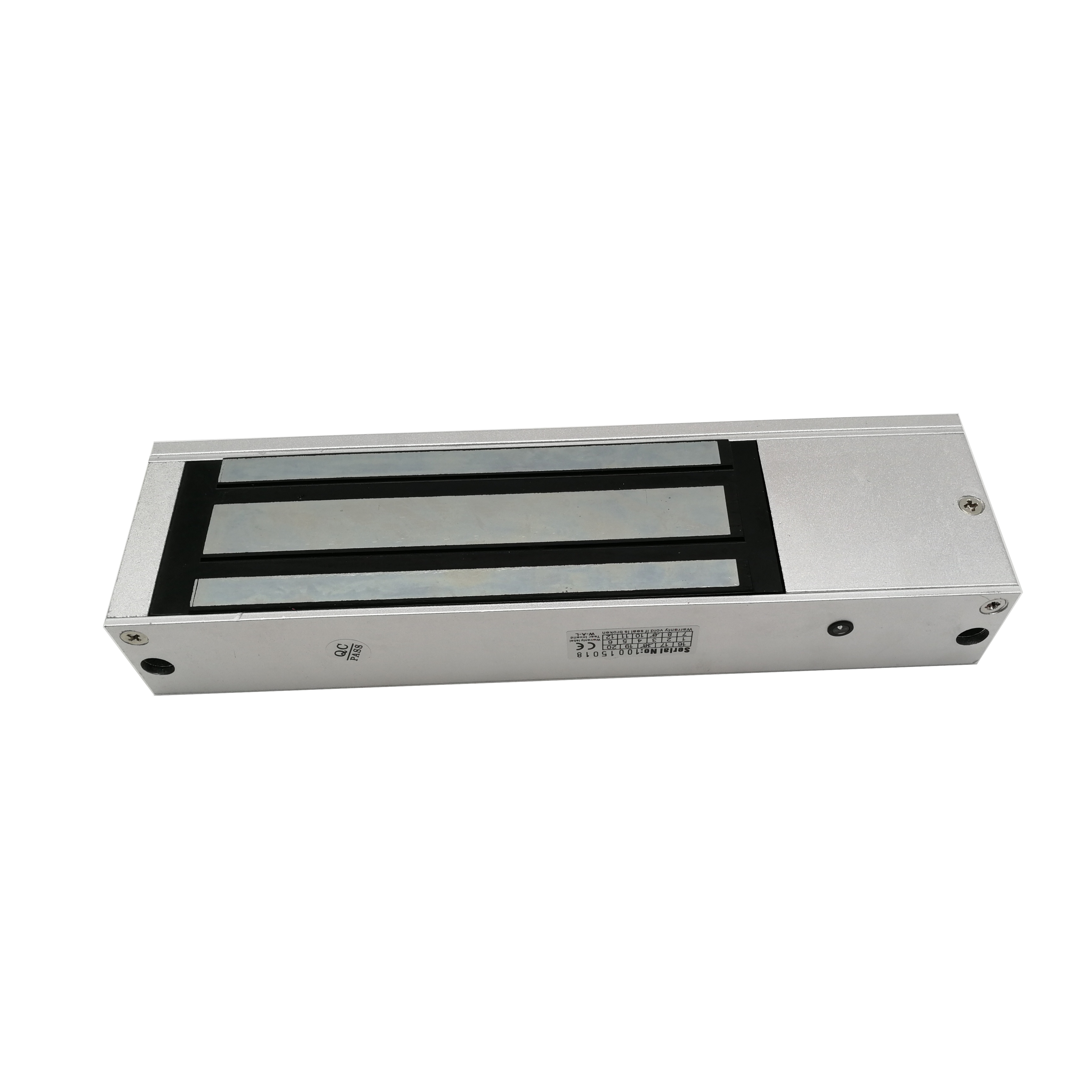

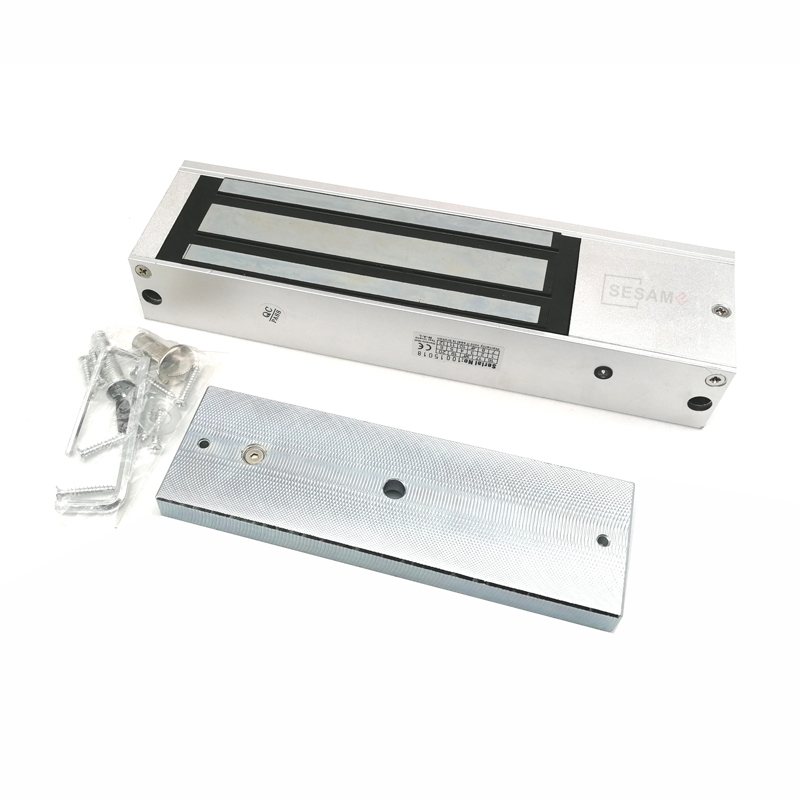

Magnetic Lock, Surface Mounted, Signal Output (Monitored)
Case: Aluminum alloy
Size: 265*71.8*38.8(mm )
Suitable for : Wooden door, Glass door, Metal door, etc
Power on to lock,Status signal NO/NC output
Holding force: 500kg(1200lb)
Current Draw: 420mA
Weight: 4.5kg
SM-500：LED light on

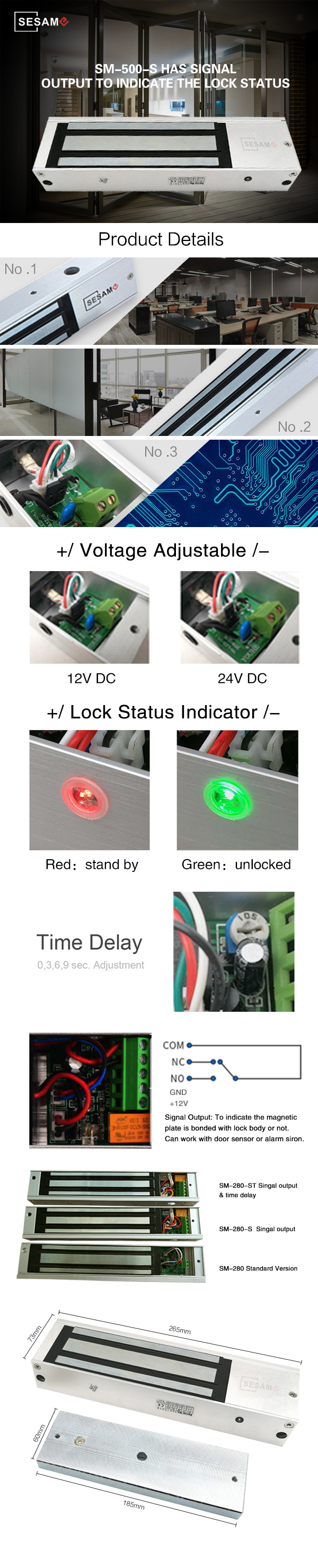

SM-500-S: Signal Output(Monitored) LED (Red locked)
SM-500-T: 0,3,6,9 secs Delay
SM-500-ST:Signal Output, LED, 0,3,6,9 secs Delay
