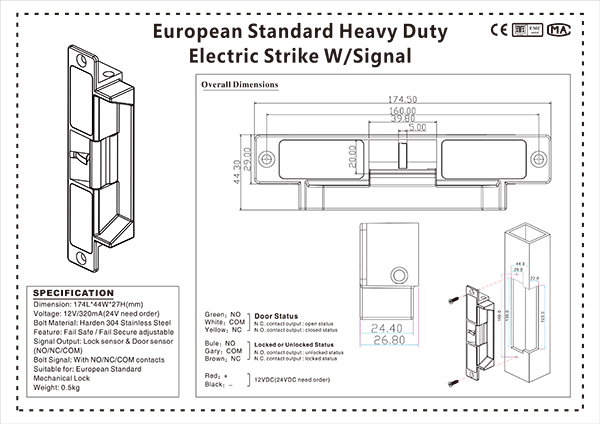

Lock Size174Lx44Wx27H(mm)
Strike Structure: 304 Stainless Steel
Holding Force: 1000kg
Voltage: DC12V (Need Order DC24V)
Current: 12V/320mA;24V/160mA
Signal Output: Lock Status OutputNO/NC/COM
Panel selection
Stainless steel, high strength aluminum alloy
Suitable For: Wooden Door,Metal Door
Surface Temperature: Within +20℃
Suitable Temperature: -10~+55℃(14-131F)
Operating Humidity: 0～90%(non-condensing)
Face plate Housing: Painted Steel
Lock tongue: Surface by coating nickel
Function: Built-out MOV
Weight: 0.5kg
